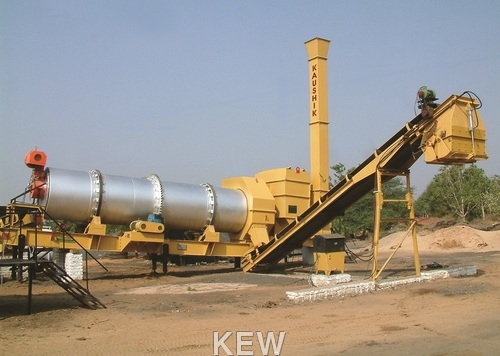

Automatic Asphalt Mixing Plant

Automatic Asphalt Mixing Plant
Automatic Asphalt Mixing Plant
Product Code : 14
Product Description

Owing to our client centric approach we have fixed out a commendable position in this field by offering best quality Automatic Asphalt Mixing Plant. This is manufactured under the stern guidance of adept professionals at our well-equipped premises. Preferred for its superior fuel efficiency, the offered plant suits as best equipment for hassle free processing of asphalt for construction of road.  Interested clients can purchase this Automatic Asphalt Mixing Plant at reasonable prices from us.

Features:

  • Robust construction
  • User-friendly operations
  • High efficiency
  • Trouble free installation



THERMO DRUM UNIT

The Drying and Mixing unit of the asphalt plant demands complex flight design and heat transfer technology. With our passion to build the best machines, continuous R & D and incorporation of the latest design up-gradations, KEW thermo drum is way ahead of competition.

The KEW thermo drum unit follows a triple heat transfer system that ensures a total transfer of heat to the aggregates, translating into higher productivity and lower fuel consumption. The heat is transferred to the aggregates using the conductive, connective and radiation techniques.

The field proven unique flight design ensures total heat transfer, a thorough mixing & coating, lower emissions and prevention of bitumen oxidation.

DRUM MECHANICS

The 30-12oTph plants are supplied with a low maintenance cradle type drum drive. The auto lubrication system ensures proper and adequate lubrication on the chain drive thereby ensuring long life of machine with trouble free service. Optionally a four wheel friction drive, which is a standard on the 120 Tph and higher models, can be supplied.

Specially treated sprockets, thrust wheels, trunion rings & trunion rollers, engineered precisely for flawless and trouble free dryer drum rotation, ensures unlimited productivity.


KEW 45 (45-60 TPH)

KEW 50 (60-90 TPH)

KEW 60 (90-120 TPH)

KEW 65 (90-120 TPH)

Four bin feeder





No of bins

4

4

4

4

Storage capacity

31 MT

40 MT

54 MT

54 MT

Hopper size (lxw)

2500mmx2200mm

3000mmx2200mm

3650mmx2060mm

3650mmx2060mm

Auxllary drive motor

1.1 kw x 4 Nos

1.5 kw x 4 Nos

2.2 kw x 4 Nos

2.2 kw x 4 Nos

Auxllary conveyor belt

400mm x 2.2 mtr

450mm x 2.92mtr

450mm x 3.78mtr

450mm x 3.78mtr

Gathering drive motor

3.70 kw

3.70 kw

5.50 kw

5.50 kw

Gathering conveyor belt

500mm x 22.5 mtr

600mm x 25.6 mtr

600mm x 29.6 mtr

600mm x 29.6 mtr

Bin virbrator (1 No)

0.75 kw

0.75 kw

0.75 kw

0.75 kw

Feeding capacity

100 TPH

150 TPH

200 TPH

200 TPH

Overall dimension (approx)

11.6 mtr x2.55mtr x 2.45

13.5 mtr x 2.55 mtr x 2.45 mtr

16.25 mtr x 2.55 mtr x 2.75 mtr

16.25 mtr x 2.55 mtr x 3.00 mtr

Total connected load

8.85 kw

10.45 kw

15.05 kw

15.5 kw

Over size removal screen

Diver motor

0.75 kw

0.75 kw

0.75 kw

0.75 kw

Wire mesh

45mm x 45mm

45mm x 45mm

45mm x 45mm

45mm x 45mm

Screening belt

800 x 1200 mm

800 x 1200 mm

900 x 1200 mm

900 x 1200 mm

Silnger converyor

Conveyor drive motor

2.20 kw

3.70 kw

3.70 kw

3.70 kw

Conveyor belt

500mm x 15 mtr

600mm x 15 mtr

600mm x 15 mtr

600mm x 15 mtr
