Bitumen Pressure Distributor

Bitumen Pressure Distributor
Bitumen Pressure Distributor
Product Code : 04
Product Description

We are successfully engaged in manufacturing, exporting and supplying the best quality range of Bitumen Pressure Distributor. The offered distributor is manufactured using excellent quality components with the aid of contemporary techniques. Featured with unique pressure cleaning system cleaning system to avoid clogging, this is widely used as important equipment for uniform distribution of asphalt during road construction. In addition, our clients can purchase this Bitumen Pressure Distributor in different technical specifications from us at reasonable prices from us.

Key points:

  • Smooth functioning
  • Power efficient
  • Modular construction
  • Extended working life

Bitumen Pressure Distributor

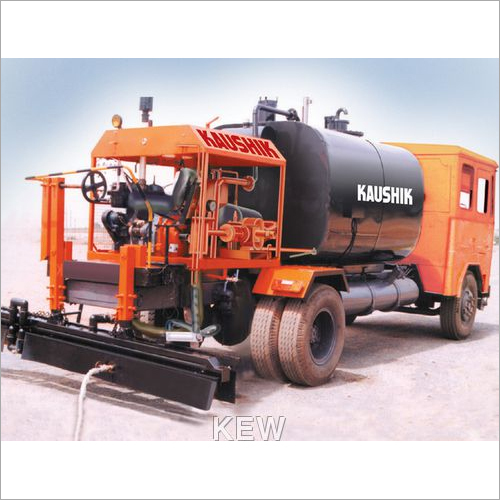

Truck mounted self propelled bitumen pressure distributor with suitable heating system and variable spray bar to operate on constant pressure system, complete with air-compressor, bitumen pump, auxiliary engine, tank mounting and other accessories for uniform and constant rate applications of hot bitumen (or cold tar).

A unique pressure cleaning system (PCS) cleans the system after use and avoids clogging. It is capable for use with bitumen emulsion also. Trolley mounted versions can be made available in place of truck mounted.

SALIENT FEATURES

  • Fully - Insulated Tank with High Efficiency Heating System
  • Air Cooled Diesel Engine & Positive Displacement Gear Pump
  • Designed To Stuff Standard Truck Chassis
  • Safe & Easy In Operation
  • Hand Spray System
  • Unique Pressure Cleaning System
  • Totally Factory Tested, Arrives Ready To Launch

TEMPERATURE INDICATORS

  • 0 - 300 C (Analog) Scale Located On The Tank.
  • Digital Temperature Indicator with speed indicator

SPRAY BAR

Standard Width : 2.4 M.

Adjustable Extension Bar For Spraying Width up to 4.2 M.

Nozzle Distance: 225mm Nozzle c/c.

  • Pneumatically Operated Nozzles For Spray Bar Controlling.
  • With Hand Torch Burner

BITUMEN PUMP

2” x 2” , 350 me , Positive Displacement Gear Pump.

AIR COMPRESSOR

Twin Cylindered, 3HP, 360 LPM Capacity With Working Pressure Of 9 Kg/cm2

DRIVING UNIT

Powered By A 25HP Air Cooled Diesel Engine

BITUMEN SPRAYING PRESSURE

O - 6 Kg/cmz, Pressurized Bitumen Spraying.

Technical specification

MODEL

KEW – 4000

KEW – 6000

KEW - 10000

Tank Details

Length-L

2400 mm

3000 mm

4400 mm

Width-W

1800 mm

1860 mm

2208 mm

Height-H

1500 mm

1810mm

1810mm

Capacity

4000ltrs

6000ltrs

10000ltrs.

Man Hole

600mm

600 mm

600 mm-2Nos.

Insulation

50mm

50 mm

50mm

Shape

Ellipse Shape

Ellipse Shape

Ellipse Shape

Burner

Type

Compressed Air

Compressed Air

Compressed Air

Burner Fuel Tank

50 ltrs.

50 ltrs

75 ltrs.

Engine Fuel Tank

20ltrs

20ltrs

20ltrs.

Service Tank

20 ltrs

20ltrs

20 ltrs.

Recommended Chassis

Wheel Base-WB

3760 mm

4470 mm

5030 mm

Clear Chassis Length-CL

4850 mm

5750 mm

7000 mm
